Connection and Alarm centralization system of intrusion detectors
RELIABILITY : The CONNECT module enables the simultaneous creation of : a D.R.N. radio network and a RS485 wire network
EASE AND SPEED of deployment and implementation.Possibility of secured configuration via secured applications on Smartphones
CENTRALIZATION : MAXIBUS Universal is the unique interface for the management of all the intrusion perimeter detectors present onsite. ivory-white
Principle

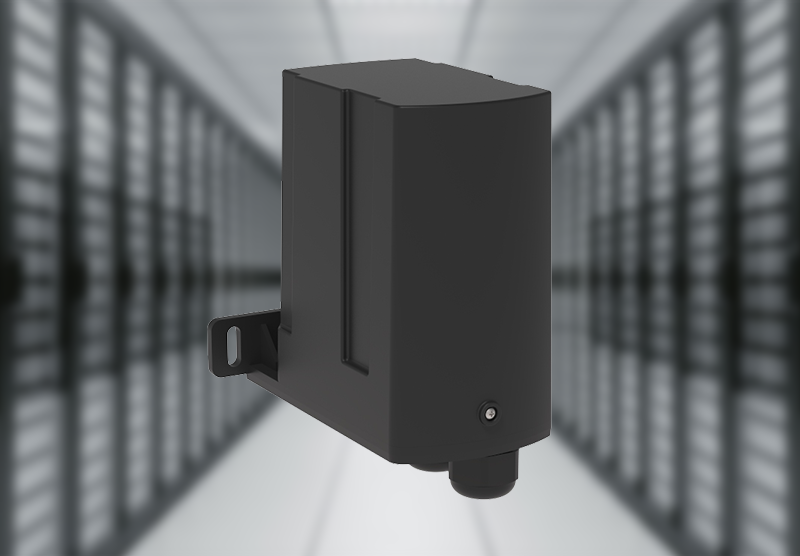

The CONNECT module enables the connection of all types of distant intrusion of the MAXIBUS concentrator through a secured dynamic wired D.R.N. radio network or a wired RS485 network.
The CONNECT module is compatible with all types of detectors with dry contact outputs. MAXIBUS Universal becomes the unique interface for the management of all the intrusion perimeter detectors present onsite.
Alarm signals | 8-inputs on/off + Tamper |
Transmission of alarms | Either by dynamic mesh radio network to radio coordinator Or by RS 485 wire network |
Radio frequency | Frequency band 915Mhz Selectable channels (906 - 924Mhz) LORA modulation |
Encrypted radio network | Secured protocol (AES encrypted) |
Power supply | 4 Vdc – 26 Vdc range (10mw under 4 Vdc consumption) |
Working temperature | From 35°F to +158°F (-35°C to +70°C) |
Electromagnetic compatibility | FCC approved |
Local configuration without wire via | Applications available for smartphones : On GooglePlay and AppStore |
Alarm transmission | MAXIBUS Universal compatible with RS485 |
Configuration tools | Embedded HTML server |
Power supply | 12 Vdc (40 mA) |
Working temperature | From -35°C to +70°C |
