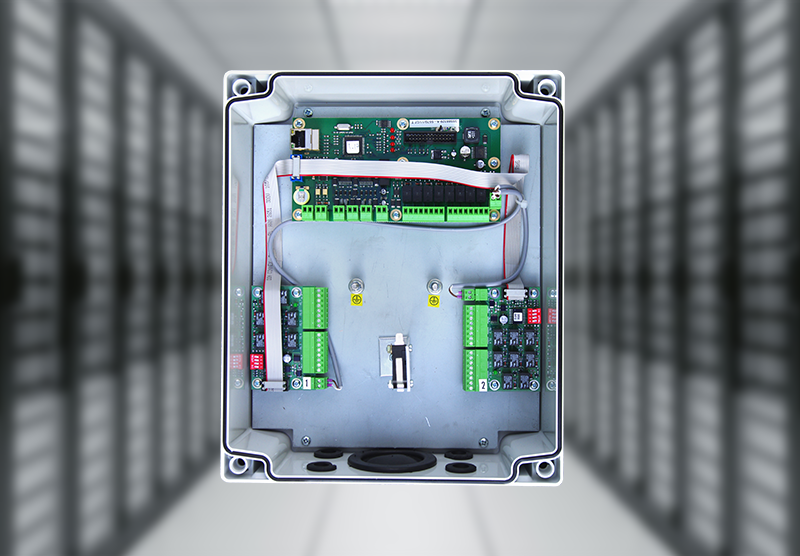

MAXIBUS UNIVERSAL
Centralisation of alarm information
Can manage up to 800 alarm points
Integration with the main VMS on the market : Genetec, Seetec,Milestone, etc
Remote Maintenance : time-stamped records, real-time visualisation of detectors, configuration settings accessibles via web server
136 alarm relays : 8 relays + upto 8 relays x 16 extension cards

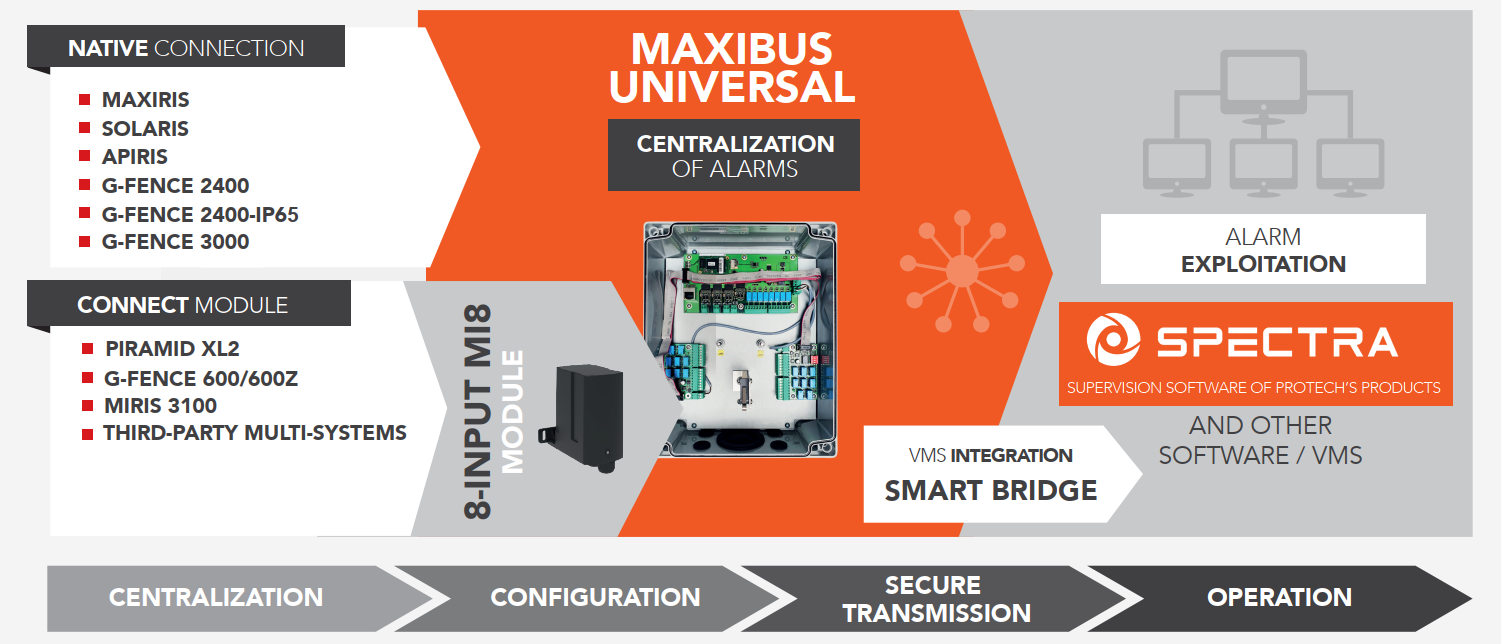

Principle

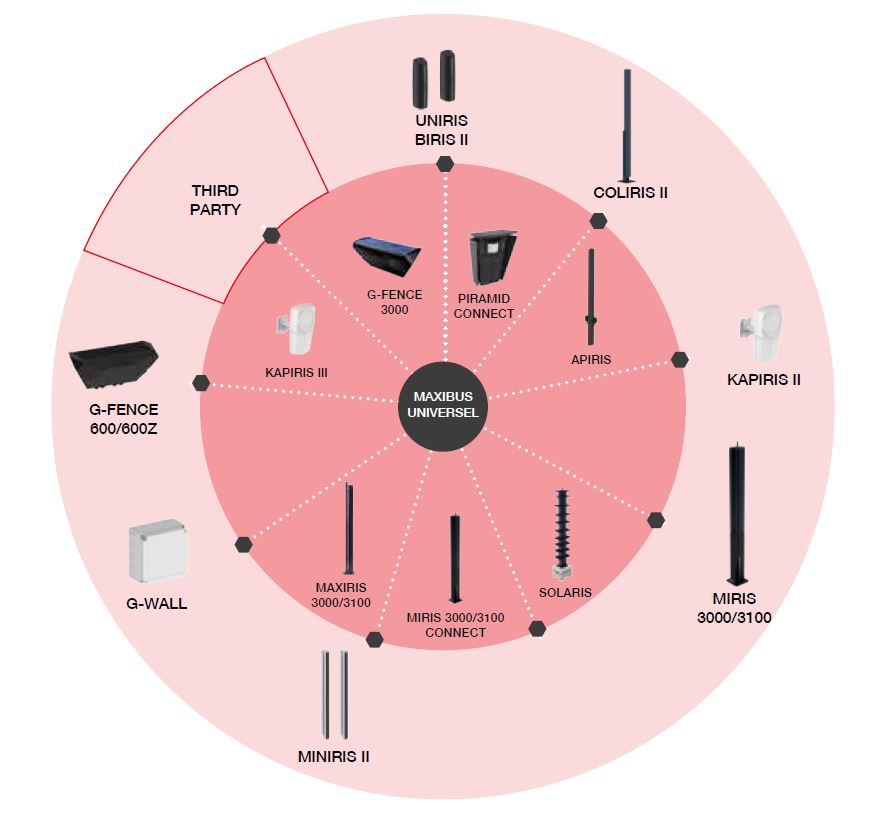

The MAXIBUS allows you to centralize the alarm contacts of different PROTECH products in 1 single point, thanks to their networking. It has maintenance and remote programming functions.
| Power supply | Power supply 12 Vdc |
| Consumption without alarm | Consumption without alarm 230mA without relay extension card (1,5 A with136 relays max.) |
| Connection | Connection Ethernet RJ45, 10/100 Base-T |
| Field BUS | Field BUS 4 RS485 outputs under the MODBUS protocol |
| Alarm outputs | Alarm outputs From 8 to136 output relays with the addition of a 8-relay extension card |
| Housing dimensions (mm) | Housing dimensions (mm) 253 x 313 x 115 |
| Working temperature | From 0° C to +55° C |
| OPTIONS | |
| Extension card | 8 relays, up to 16 cards |
| Connect MODULE | Connects the intrusion detectors to the MAXIBUS UNIVERSEL concentrator via a secured dynamic |
