Wall-mounted intrusion detection
EASY INSTALLATION & MAINTENANCE : One sensor per panel, modular product, which is easily set-up by non-technical personnel in a few hours and maintained/repaired if necessary in minutes
RELIABILITY : Detection through vibration analysis provides a high probability of detection
ROBUSTNESS : Extremely robust detector cable that can undergo extreme impacts and deliver intrusion information in seconds
Overview
Equipped with a new innovative technology, G-WALL is designed to detect impacts from intrusions on walls. Accelerometer technology is integrated into this product which detects any attempt to pull, cut and/or break through the exterior of a building.
G-WALL contains a control unit that manages one or two detection zones. Vibration sensors are integrated every 16 feet (5m) along the cable. These sensors transmit intrusion impact information to the control unit which analyzes and triggers alarm signals.
Installed on the interior walls of a building, G-WALL offers up to 2000 feet (600 m) of detection per system. System modularity enables it to adapt to any type of building structure. Event logs are available via a web server.

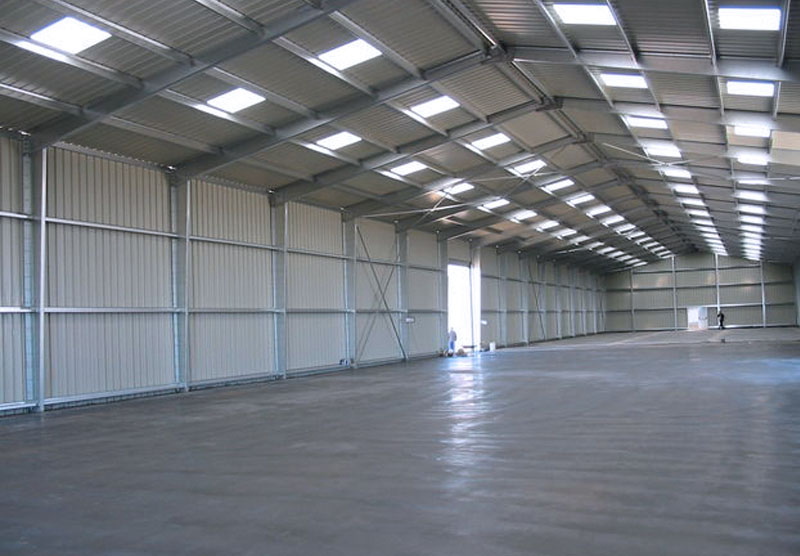

G-WALL is designed to detect impacts on walls, by analyzing vibrations created during an intrusion attempt. Installed on interior walls, this product is suitable for monitoring large building structures such as warehouses, retail sites and transportation and logistics building facades.
G-WALL is easy to install as the sensor is fixed directly on the wall inside the building with a screw-on plastic component. The same applies to the control, termination or link units.
G-WALL is made up of 6 sections of 20 sensors per section which can be connected according to the building’s configuration. The cables are freely distributed between detection areas which can be up to 2000 feet (600 m) in each direction. Once installed and powered, the configuration and settings of G-WALL are set.
G-WALL technology provides a high probability of detection and is ideally suited for impact detection on walls. Sensitivity settings can be set-up based on the number of impacts. Settings and alarm logs are enabled remotely via the web server.
In areas where detection is not required (i.e. a gate), standard (non-detecting) electrical cable (passive) can be used to save on costs.
Power supply | 12 Vdc |
Alarm information | Intrusion (per cable) up to 10 zones Technical default (cable cut, power default) Tamper protection |
Operating Temperature | From -40ºF to +158ºF (-40ºC to +70ºC) |
Installation | 1 sensor every 10ft (3m) up to 656 ft (200m) of additional passive cable per system from UG to initial URs and for non-detection areas |
Remote maintenance | Integrated web server - Up to 1000 events log history |
Install one sensor per cladding panel using components to affix (provided).
Hooks are provided to affix cable to wall.
To secure a fence and detect any intrusion attempt, a detector cable is installed on the fence. During an intrusion, the sensors will detect vibrations on the fence and send information to the Control Units, which in turn analyzes the information received before triggering an alarm, or not.
The cable is pre-assembled with -easy-to-install sensors helping to reduce installation costs.
