Dual technology volumetric motion detection sensor
Approved by the USAF for Protection Level 1 Nuclear & Below
COVERAGE: VOLUMETRIC SENSORS:
SDI-76: H 90°, V 60°, 50ft. x 50ft. (15m x 15m)
SDI-77: H 60°, V 60°, 90ft. x 50 ft. (27m x 15m), other patterns are availableRELIABILITY : Dual technology sensing configured for “And Gate” operation
PERFORMANCE : False-alarm-free performance over a wide variety of applications
Overview

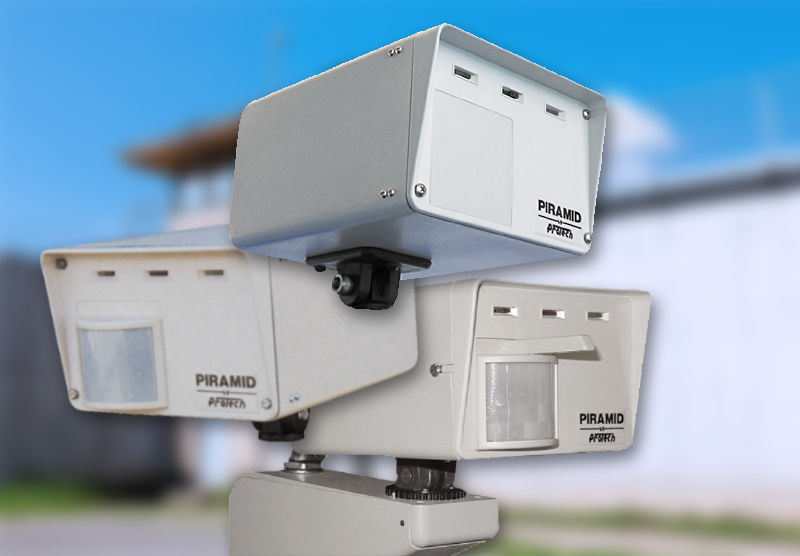

PIRAMID XL2 is a dual technology volumetric intrusion sensor which integrates a unique proprietary microwave design (termed Stereo Doppler) and passive infrared. These two complementary technologies must be activated simultaneously to generate an overall sensor alarm. The microwave portion detects the motion of the intruder, whereas the passive infrared portion detects a change in the infrared radiation as an intruder moves through the area.
Advanced signal processing for each of the two technologies enable immunity to randomly moving targets such as vibration, swinging signs and moving vegetation. Special filtering facilitates exceptional immunity to birds and small animals. PIRAMID sensors offer reliable volumetric detection (and protection) in the most extreme environmental conditions.
| Input Voltage | 10.5 to 28 Vdc (Also available in 24 VAC) |
| Consumption | 100 mA at 12 Vdc (LEDs OFF) |
| Power density | 120 µW/cm² maximum in front of the device |
| Factory setting frequency | USA – 10.525 GHz, International - 10.587 GHz / 9.90 GHz / 9.47 GHz |
| Operating temperature | -40°F to 158°F (-40°C to +70°C ) |
| Relative humidity | 0 to 100% |
| Relay contact capacity | 100 mA / 50 V |
| Housing dimensions (mm) HS dimensions | 158,75 (L) x 133,35 (W) x 88,90 (H) 335,28 (L) x 133,35 (W) x 237.49 (H) |
| Housing dimensions (inches) HS dimensions | 6.70 (L) x 5.25 (W) x 3.5” (H) 13.20 (L) x 5.25 (W) x 9.35” (H) |
| Package dimensions (mm) HS Package dimensions | 330.2 (L) x 228.6 (W) x 177.8 (H) 355.6 (L) x 254 (W) x 254 (H) |
| Package dimensions (inches) HS Package dimensions | 13 (L) x 9 (W) x 7” (H) 14 (L) x 10 (W) x 10” (H) |
